OEM#: 056T17D5329New OEM Original Outright

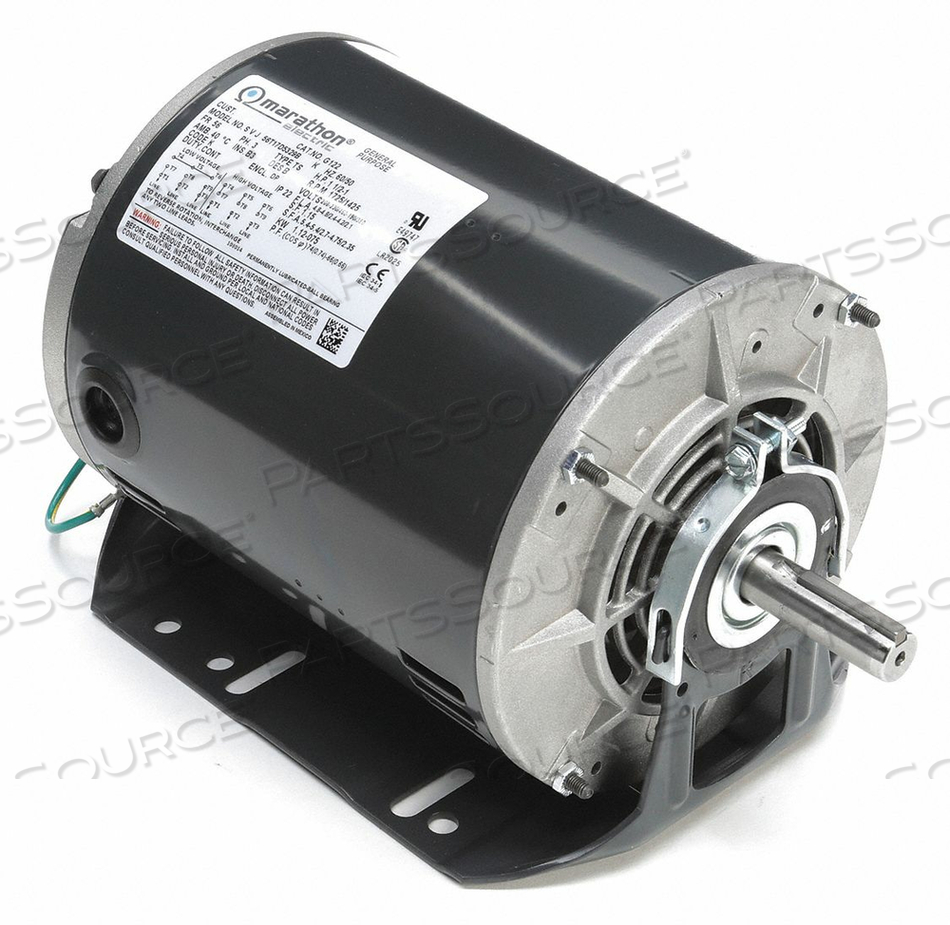

CONDENSER FAN MOTOR 1-1/2 HP 56 FRAME by Marathon Motors

Your price:
$405.41 eachReady to ship
HomeMarathon Motors056T17D5329
CONDENSER FAN MOTOR 1-1/2 HP 56 FRAME by Marathon Motors
CONDENSER FAN MOTOR 1-1/2 HP 56 FRAME by Marathon Motors

OEM#: 056T17D5329
CONDENSER FAN MOTOR 1-1/2 HP 56 FRAME by Marathon Motors

New OEM Original Outright
Your price:
$405.41 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 056T17D5329 Key Specs
Item
CONDENSER FAN MOTOR 1-1/2 HP 56 FRAME
OEM
Marathon Motors
OEM #
056T17D5329
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Body Diameter
6-1/2 in
Duty
Continuous
Frame
56
Full Load Amps
4.8-4.8/2.4
HP
1-1/2
Hz
60/50
Ins. Class
B
Length Less Shaft
9-1/2 in
Manufacturers Warranty Length
1 yr
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
Motor Mounting Position
Horizontal
Motor Mounting Type
Cradle Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Belt Drive Fan/Blower
Motor Thermal Protection
None
Nameplate RPM
1725
Nominal Efficiency
80 %
Number of Speeds
1
Overall Length
11-3/8 in
Phase
3
Resilient Ring Diameter
2-1/2 in
Ring to Ring Center
9-1/16 in
Shaft Diameter
5/8 in
Shaft Length
1-15/16 in
Standards
UL (E46035), CSA (MC236833)
Voltage
208-230/460
Voltage Compatibility
208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
