OEM#: 215TTFCD6526New OEM Original Outright

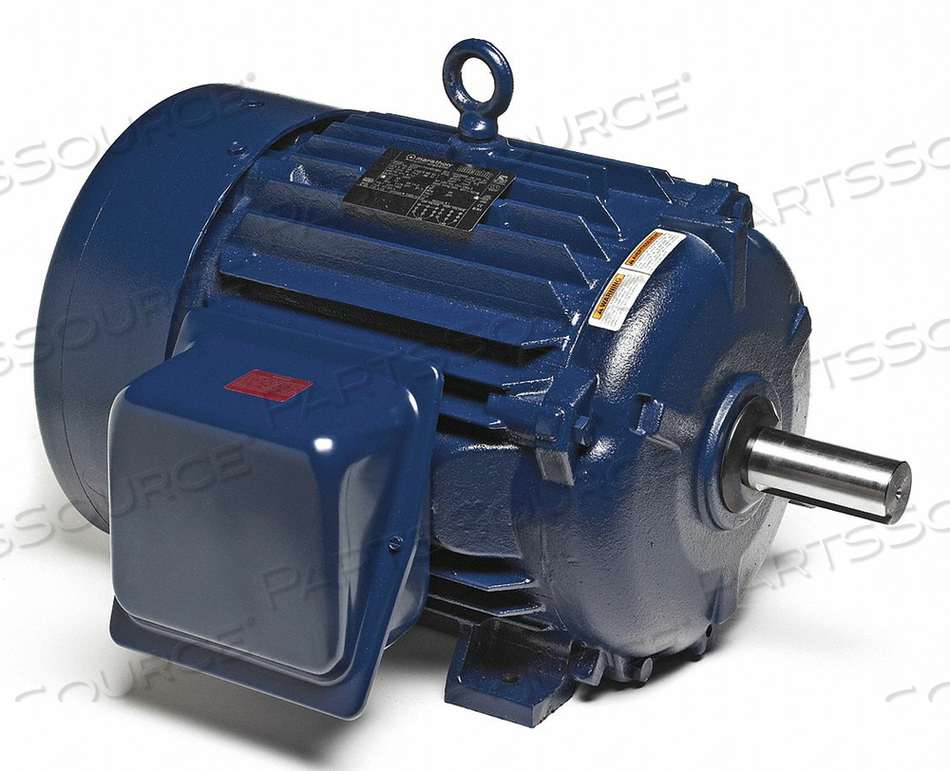

MOTOR 3-PHASE DESIGN 10 HP FRAME 215T by Marathon Motors
Your price:
$1,486.04 each
OEM#: 215TTFCD6526MOTOR 3-PHASE DESIGN 10 HP FRAME 215T by Marathon Motors
New OEM Original Outright
Your price:
$1,486.04 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 215TTFCD6526 Key Specs
Item
MOTOR 3-PHASE DESIGN 10 HP FRAME 215T
OEM
Marathon Motors
OEM #
215TTFCD6526
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Duty
Continuous
Frame
215T
Full Load Amps
13.3
HP
10
Hz
60
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
19-1/4 in
Manufacturers Warranty Length
1 yr
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1765
Nominal Efficiency
91.7 %
Number of Speeds
1
Overall Length
22-5/8 in
Phase
3
Shaft Diameter
1-3/8 in
Shaft Length
3-3/8 in
Standards
UL(E49747), CSA(LR2025), CE Listed
Voltage
460
