OEM#: W584New OEM Original Outright

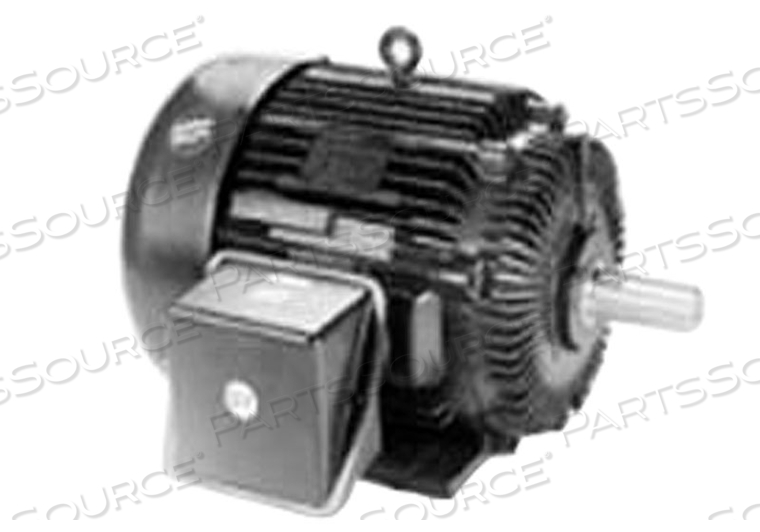

SEVERE DUTY MOTOR, 364TSHFS9001, 60HP, 460V, 3600RPM, 3PH, 364TS FR, TEFC by Marathon Motors
Your price:
$10,200.49 each
OEM#: W584SEVERE DUTY MOTOR, 364TSHFS9001, 60HP, 460V, 3600RPM, 3PH, 364TS FR, TEFC by Marathon Motors
New OEM Original Outright
Your price:
$10,200.49 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Marathon Motors Severe Duty Motor, W584, 364TSHFS9001, 60HP, 460V, 3600RPM, 3PH, 364TS FR, TEFC
Marathon's 3600 Rpm, line of Severe Duty Neman Premium XRI Duty IEEE-841 Hazardous Duty Motor are available in TEFC construction. Horsepower sizes available from stock range from 1 HP through 350 HP.
Marathon's 3600 Rpm, line of Severe Duty Neman Premium XRI Duty IEEE-841 Hazardous Duty Motor are available in TEFC construction. Horsepower sizes available from stock range from 1 HP through 350 HP.
Technical Specs
P/N: W584 Key Specs
Item
SEVERE DUTY MOTOR, 364TSHFS9001, 60HP, 460V, 3600RPM, 3PH, 364TS FR, TEFC
OEM
Marathon Motors
OEM #
W584
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
60 Hertz Kw
45
60 Hertz Rpms
3600
Ambient Temp C
40
Assembly
F1 (F2 Modification Available)
Bearing-Drive-End
6312
Ce
Y
Csa
Y
Drive End Bearing Size
6312
Duty
Continuous
Enclosure
TEFC
Enclosure Type
Totally Enclosed
Fl Amps
67
Fl Efficiency
94.5
Frame
364TS
Hazardous Location
DIVISION 2 T2B
Horsepower
60
Insulation Class
F
Inverter Speed Range
Constant 20:1
Ip Code
56
Is_Motor
Yes
Kva-Code
G
Model Number
364TSHFS9001
Motor Rpm 60Hz
3600
Mounting
Rigid
Nema Design
B
Opposite End Bearing
6312
Opposite End Bearing Size
6312
Orientation
Horizontal
Phase
3
Rpm
3600
Rpm Range
3001-3600
Service Factor
1.15
Starting Type
Line or Inverter
Ul
Recognized Construction
Voltage
460
Weight
960
