OEM#: BNH013TU/GLP4New OEM Original Outright

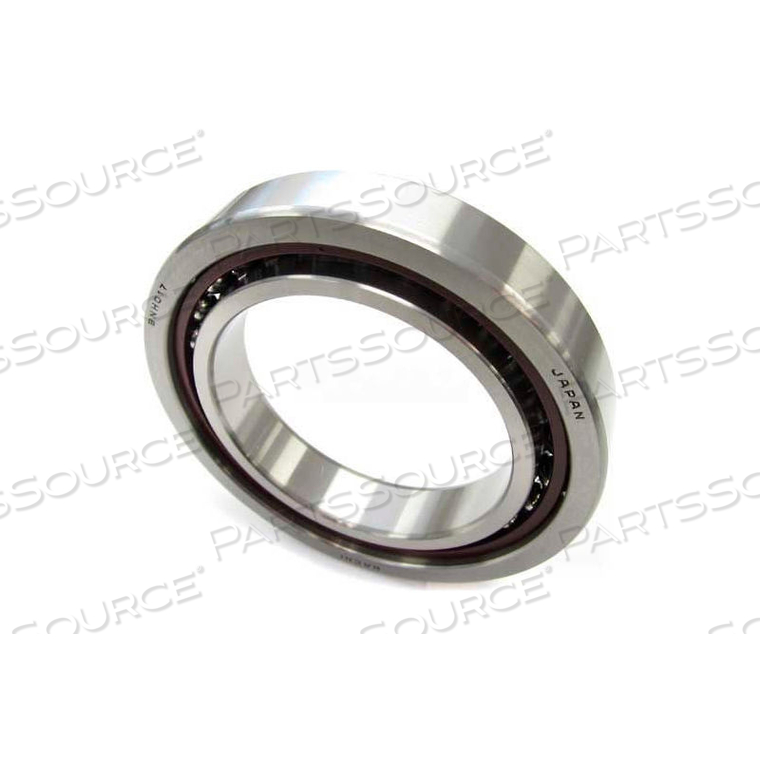

SUPER PRECISION BEARING, UNIVERSAL GROUND, SINGLE, 65MM BORE, 100MM OD by Nachi America Inc
Your price:
$358.98 each
OEM#: BNH013TU/GLP4SUPER PRECISION BEARING, UNIVERSAL GROUND, SINGLE, 65MM BORE, 100MM OD by Nachi America Inc
New OEM Original Outright
Your price:
$358.98 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
NACHI Super Precision Bearing BNH013TU/GLP4, Universal Ground, Single, 65MM Bore, 100MM OD
NACHI Features
NACHI Features
- Small Ball Diameter & Optimum Internal Design generate higher speed and lower heat generation
- Interchangeable with 7000 series with identical boundary dimensions
- Two bearings are used in a duplex pair to provide a high degree of rigidity in both radial & axial directions
- Meets the needs of machine tool manufacturers for precision bearings (15° contact angle, P4) that can operate at lowest possible temperature for wide range of speeds & operating loads
- These Universal Flush Ground Bearings can be mounted in DB, DF or DT
Technical Specs
P/N: BNH013TU/GLP4 Key Specs
Item
SUPER PRECISION BEARING, UNIVERSAL GROUND, SINGLE, 65MM BORE, 100MM OD
OEM
Nachi America Inc
OEM #
BNH013TU/GLP4
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Style
Single
Bore Diameter Millimeters
65
Cage Type
Phenolic
Contact Angle
15
Dynamic Load Rating (N)
21500
Max Speed / Oil (Rpm)
23000
Outer Diameter Millimeters
100
Preload
Light
Series
7000
Static Load Rating (N)
23400
Tolerance
P4 (ABEC7)
Width Millimeters
18
