OEM#: GW1New OEM Original Outright

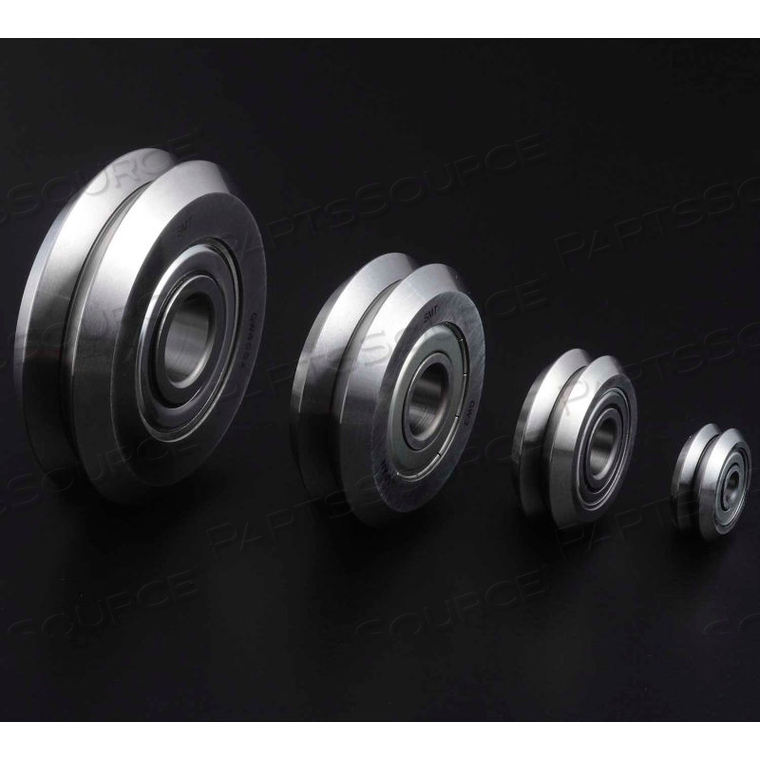

GUIDE WHEEL BEARING, DOUBLE SHIELDED, OD 19.58 MM, BORE 4.762 / 4.754 MM, METRIC by SMT CORP
Your price:
$17.15 each
OEM#: GW1GUIDE WHEEL BEARING, DOUBLE SHIELDED, OD 19.58 MM, BORE 4.762 / 4.754 MM, METRIC by SMT CORP
New OEM Original Outright
Your price:
$17.15 each
Asset Information
Must purchase minimum of 3
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
SMT GW1 Guide Wheel Bearing, Double Shielded, OD 19.58 mm, Bore 4.762 / 4.754 mm, Metric
SMT Guide Wheel Bearings work as linear motion components to help providing smooth linear motion. The outer rings of SMT bearings engage either with protruded or concaved V-shape track rails. They are made of AISI 52100 bearing steel or SUS 440C stainless steel for corrosion resistance. Since their internal design is same as double row angular contact ball bearings, they are capable of supporting radial, axial or moment loads.
SMT Guide Wheel Bearings work as linear motion components to help providing smooth linear motion. The outer rings of SMT bearings engage either with protruded or concaved V-shape track rails. They are made of AISI 52100 bearing steel or SUS 440C stainless steel for corrosion resistance. Since their internal design is same as double row angular contact ball bearings, they are capable of supporting radial, axial or moment loads.
Technical Specs
P/N: GW1 Key Specs
Item
GUIDE WHEEL BEARING, DOUBLE SHIELDED, OD 19.58 MM, BORE 4.762 / 4.754 MM, METRIC
OEM
SMT CORP
OEM #
GW1
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Axial Clearance (Mm) Under 2.5 Kg
0.015 to 0.051
Bearing Type
Guide Wheel
Bore Diameter Inches
.1875 / .1872
Bore Diameter Millimeters
4.762 / 4.754
Bottom Diameter Inches
0.625
Bottom Diameter Millimeter
15.875
Cage Material
Nylon 66
Contact Angle
30
Dimension X Inches
0.02
Dimension X Millimeters
0.5
Dimension Y Inches
0.011
Dimension Y Millimeters
0.27
Dynamic Load Rating (N)
2180
Grease Rpm
26000
Lubrication Type
Shell Alvania S2, Prepacked
Operating Temperature
-13 to 266°F
Outer Diameter Inches
0.771
Outer Diameter Millimeters
19.58
Shaft Fillet Corner Radius Max (Mm)
0.5
Static Load Rating (N)
1110
Width Inches
0.31
Width Millimeters
7.874
SMT GW1 Guide Wheel Bearing, Double Shielded, OD 19.58 mm, Bore 4.762 / 4.754 mm, Metric
