OEM#: SBFL205-16GNew OEM Original Outright

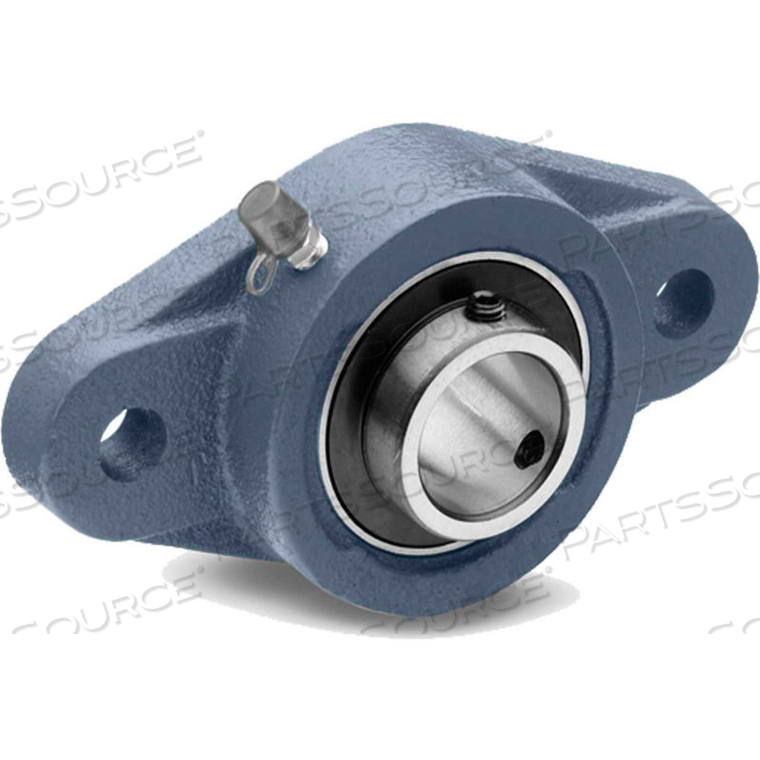

FLANGE MOUNT BEARING, 2 BOLT FLANGE, SET SCREW LOCKING, BORE 1" (25.4MM) by Tritan
Your price:
$18.22 each
OEM#: SBFL205-16GFLANGE MOUNT BEARING, 2 BOLT FLANGE, SET SCREW LOCKING, BORE 1" (25.4MM) by Tritan
New OEM Original Outright
Your price:
$18.22 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Tritan, SBFL205-16G, Flange Mount Bearing, 2 Bolt Flange, Set Screw Locking, Bore 25.4 mm
Features:
Features:
- Light duty unit, eccentric locking collar
- Cast-iron housing
- Narrow inner ring bearing
- Full cover metal-shroud seals
Technical Specs
P/N: SBFL205-16G Key Specs
Item
FLANGE MOUNT BEARING, 2 BOLT FLANGE, SET SCREW LOCKING, BORE 1" (25.4MM)
OEM
Tritan
OEM #
SBFL205-16G
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Material
AISI 52100 Steel
Bearing Type
Mounted Bearing Unit
Bolt Hole Size
3/8" / M10
Bore Diameter Millimeters
25.4
Construction
Cast Iron
Dynamic Load Rating (N)
3147.33
Insert
SB205-16G
Internal Radial Clearance
0.012 - 0.028
Locking Type
Set Screw
Maximum Temperature
250 F
Mounting Hole Center Millimeter
99
Mounting Surface To Centerline Of Shaft (Mm)
13
Number Of Bolts
2
Overall Height (Mm)
35.8
Overall Length (Mm)
130
Overall Width (Mm)
68
Static Load Rating (N)
1764.75
Width Millimeters
68
